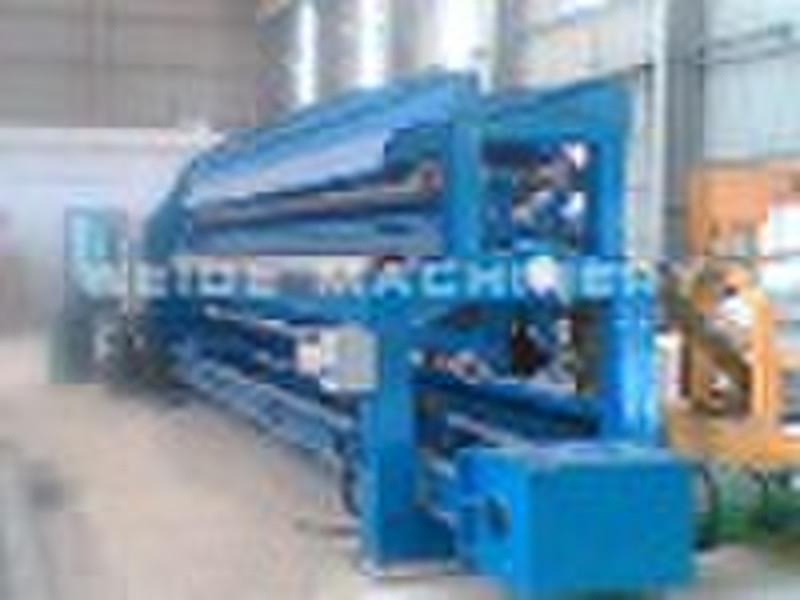

MT6 winding machine

MT6 windingmachine consists of winding machine,mould shelfwith multiple axis,calibration machine after ejection mould,system of mixing resin etc.Configuration ofwinding machine: 1.Drive head of of liner making machine 2.Railway of liner making machine 3.Winding carriage 4.Resin groove type soaking in bottom 5.Draw-fiber shelf type simple 6.System of timing frequency conversion 7.Control system of computer,main electric control borad and accessorial electric control borad 8.Bracket mylarConfiguration of mould shelfwith multiple axis: 1.Drive head for reversing mould 2.Tail of shelf 3.Joint axisafter ejection mould 4.Liner making equipment 5.Ejection mould equipment 6.Heating and curing equipment 7.Ejectric control system Configuration of Calibration machine after ejection mould: 1.Calibration foundation 2.Drive head of calibration machine and stopper 3.Small car for making mould up& down 4.Calibration head & moving device fore and aft hydraulic system 5.Stopper of calibration machine 6.Electric control system 7.Pipe,part ofpipe and valvesConfiguration of mixing resin system: 1.Mixing tin of liner layer 2.Mixing tin of structural layer 3.Feeding resin system 4.Electric control system 5.Pipe,Valve and accessory
